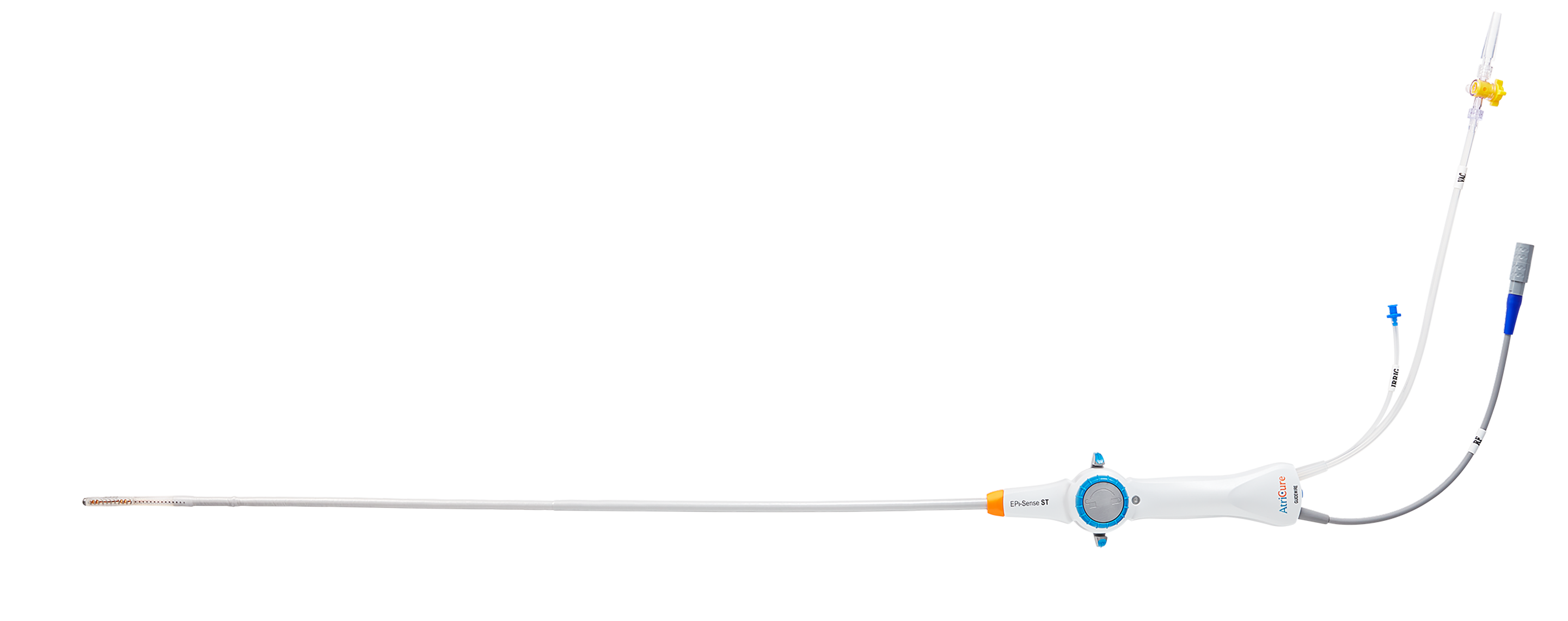

EPi-Sense ST System
The Latest Innovation in Deflection and Control for Epicardial Atrial Fibrillation Ablation for the Treatment of Advanced Afib Patients



Features

  • Deflection of distal tip +/- 30° degrees
  • Locking mechanism
  • Torqueability (1:1 rotation)
  • LED indicator light
  • 3 cm device electrode length
  • 2 distal and proximal sensing electrode pairs
  • Irrigation/perfusion lumen
  • Integrated suction

Benefits

  • Steering lever allows the distal tip to deflect, allowing the operator to adjust the location of ablation coil
  • Steering and braided catheter design provide control to position placement of the EPi-Sense ST
  • Intuitive handle design and braided shaft allows for fine rotational and controlled positioning of the ablation coil
  • LED on handle alerts user when device distal end exceeds temperature threshold

How EPi-Sense ST Works

Consistent Tissue Contact = Consistent Energy Transmission = Complete Lesions

Saline cooling solution cools the backside of the EPi-Sense ST device

Cannula

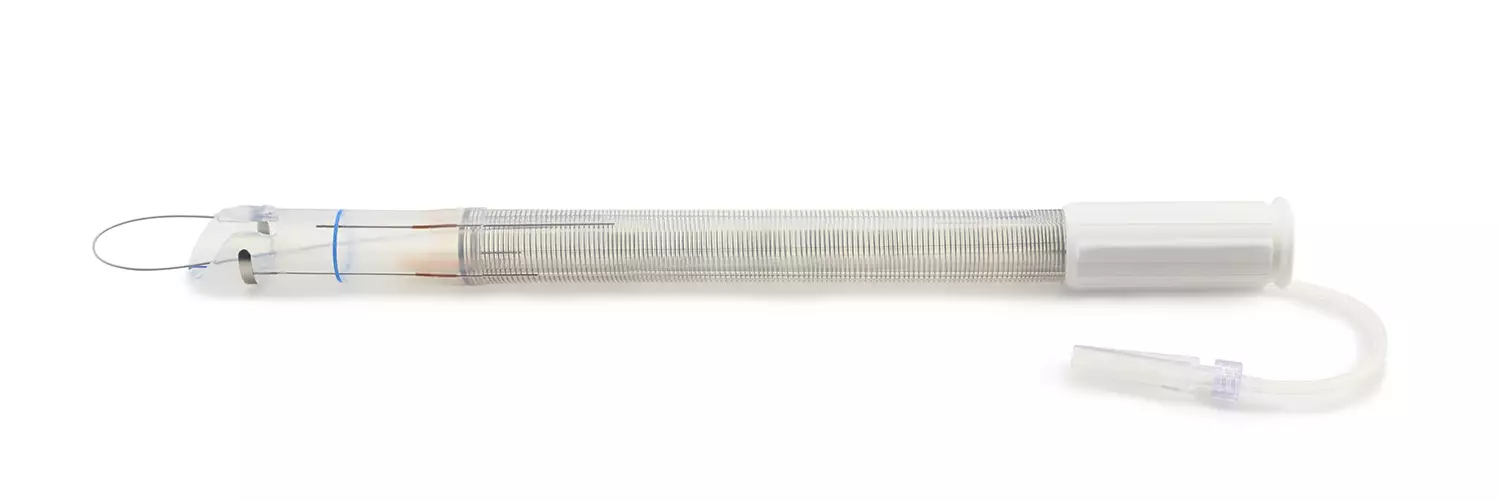

EPi-Sense ST Cannula



The Cannula allows the surgeon to access the atria through a one inch incision in the abdomen. Through the Cannula, an endoscope and the coagulation device are introduced into the pericardial space enabling access to the posterior surface of the heart for coagulating epicardial cardiac tissue.

The Cannula with guidewire is indicated for use in laparoscopic or general surgery to provide access for operative and diagnostic instrumentation in body cavity spaces.

Multifunctional Ablation Generator (MAG)

 Multifunctional Ablation Generator (MAG)

The MAG Generator Unit is intended to transmit radiofrequency (RF) energy to the electrodes of AtriCure RF ablation handheld devices. Please see the specific handheld device’s Instructions for Use for use information.

RF Generator

RF GeneratorThe Model CSK-320/CS-3000 RF Generator Unit is an electrosurgical generator that transmits Radiofrequency (RF) current at a frequency of 480 kHz. The generator transmits up to 100 watts (W) of Power (+/- 20%), depending on the coagulation device connected. While the RF Energy is delivered, power, impedance, and time are continually measured and updated on the generator display.

Product Code(s):
EPIST-30: 3 cm EPi-Sense ST Device
EPIST-PK: 3 cm EPi-Sense ST Device (No Cannula)



Features

  • Deflection of distal tip +/- 30° degrees
  • Locking mechanism
  • Torqueability (1:1 rotation)
  • LED indicator light
  • 3 cm device electrode length
  • 2 distal and proximal sensing electrode pairs
  • Irrigation/perfusion lumen
  • Integrated suction

Benefits

  • Steering lever allows the distal tip to deflect, allowing the operator to adjust the location of ablation coil
  • Steering and braided catheter design provide control to position placement of the EPi-Sense ST
  • Intuitive handle design and braided shaft allows for fine rotational and controlled positioning of the ablation coil
  • LED on handle alerts user when device distal end exceeds temperature threshold

How EPi-Sense ST Works

Consistent Tissue Contact = Consistent Energy Transmission = Complete Lesions

Saline cooling solution cools the backside of the EPi-Sense ST device

Cannula

EPi-Sense ST Cannula



The Cannula allows the surgeon to access the atria through a one inch incision in the abdomen. Through the Cannula, an endoscope and the coagulation device are introduced into the pericardial space enabling access to the posterior surface of the heart for coagulating epicardial cardiac tissue.

The Cannula with guidewire is indicated for use in laparoscopic or general surgery to provide access for operative and diagnostic instrumentation in body cavity spaces.

Multifunctional Ablation Generator (MAG)

 Multifunctional Ablation Generator (MAG)

The MAG Generator Unit is intended to transmit radiofrequency (RF) energy to the electrodes of AtriCure RF ablation handheld devices. Please see the specific handheld device’s Instructions for Use for use information.

RF Generator

RF GeneratorThe Model CSK-320/CS-3000 RF Generator Unit is an electrosurgical generator that transmits Radiofrequency (RF) current at a frequency of 480 kHz. The generator transmits up to 100 watts (W) of Power (+/- 20%), depending on the coagulation device connected. While the RF Energy is delivered, power, impedance, and time are continually measured and updated on the generator display.

Product Code(s):
EPIST-30: 3 cm EPi-Sense ST Device
EPIST-PK: 3 cm EPi-Sense ST Device (No Cannula)
